21.07.2024, 18:50 Uhr
  rc501
|
Hello Panzer friends,
For a long time I have been working with a friend who is a metal specialist on a 1/10 scale Tiger I tank.
I live in the center of Paris, an apartment on the 5th floor fortunately with elevator.
Above all, I would like to thank the RC Panzer website and all its contributors for the good reports that helped me and made me have a pleasant time. Thanks also to Robert, it was not easy to write the message on the mail RC Panzer.
The body of my model comes from Stehr (it was the occasion of good trips to Munich) and the rest is made on my drawings by my friend turner-miller. There are of course some 3D resin parts.
I reproduce the inside of the turret. My difficulty is to accommodate the Beier module and the battery. I hope to be able to attach some photos.
Agree with Fréderick -I like his reports- there are fewer panzers resembling the Tamiya of our adolescence.
N.B. I hope my \\\'google translate\\\' text is understandable
|
|
  2 |
|
|
21.07.2024, 21:19 Uhr
Spz_Marder
|
Hi,
nice to meet you, your Tiger looks so far so good
Do you have a special color scheme in mind, or do you want to look it fresh from the manufacturing plant?
The inside of the turret, wow thats something I am interested in! How do you realize the gun movement or is it static?
Best regards,
Falk
--
Gruß
Falk
|
|
| |
|
|
21.07.2024, 21:24 Uhr
panzerpabst
|
Hello from Germany,
please let us know your name. I think I speak in the majority of the members of this forum: please provide more pictures and details about your Tiger I built. We are interessted in all the details about how modelers created their models and what kind of experience their made.
--
Grüße aus Leipzig
Matthias
www.boorad.de
|
|
| |
|
|
22.07.2024, 20:02 Uhr
rc501
|
Hallo
Thank you for the nice messages. A few years ago after work I was so happy to see the reports that encouraged me (I remember -among others- a superb Tiger made by a modeler near Aachen), that I find it normal to send photos.
In the early 1970s, I built a Tamiya Tiger tank with the interior (1/15). It was made of plastic and I always dreamed of having one made of metal.
A meeting at the Saumur tank museum allowed me to get the project off the ground. The modeler had a passion for metalworking and turned the turret into a steel cylinder for me. Luckily, he was in retreat near Vimoutiers in Normandy and was able to take measurements on the real Tiger who remained in this small town.
Alas, this gentleman has died. I have gathered a large amount of documentation with the essentials: the remarkable site of David Byrden, and especially the book by Jenz and Doyle whose drawings are accurate and allow you to work.
I found another turner-miller who is passionate about the work and who created parts very precisely from my drawings: roof of the turret; interior of the turret, etc.The tank is almost finished in terms of metal parts.
The big difficulty is to fit the electronics, the battery, into the available space with the interior details.To respond to Spz.Marder and Panzerpabst, while reproducing the breech, I planned the recoil of the barrel (35mm, but the system must be optimized) and the flash. Due to lack of space, there is no elevation of the barrel.

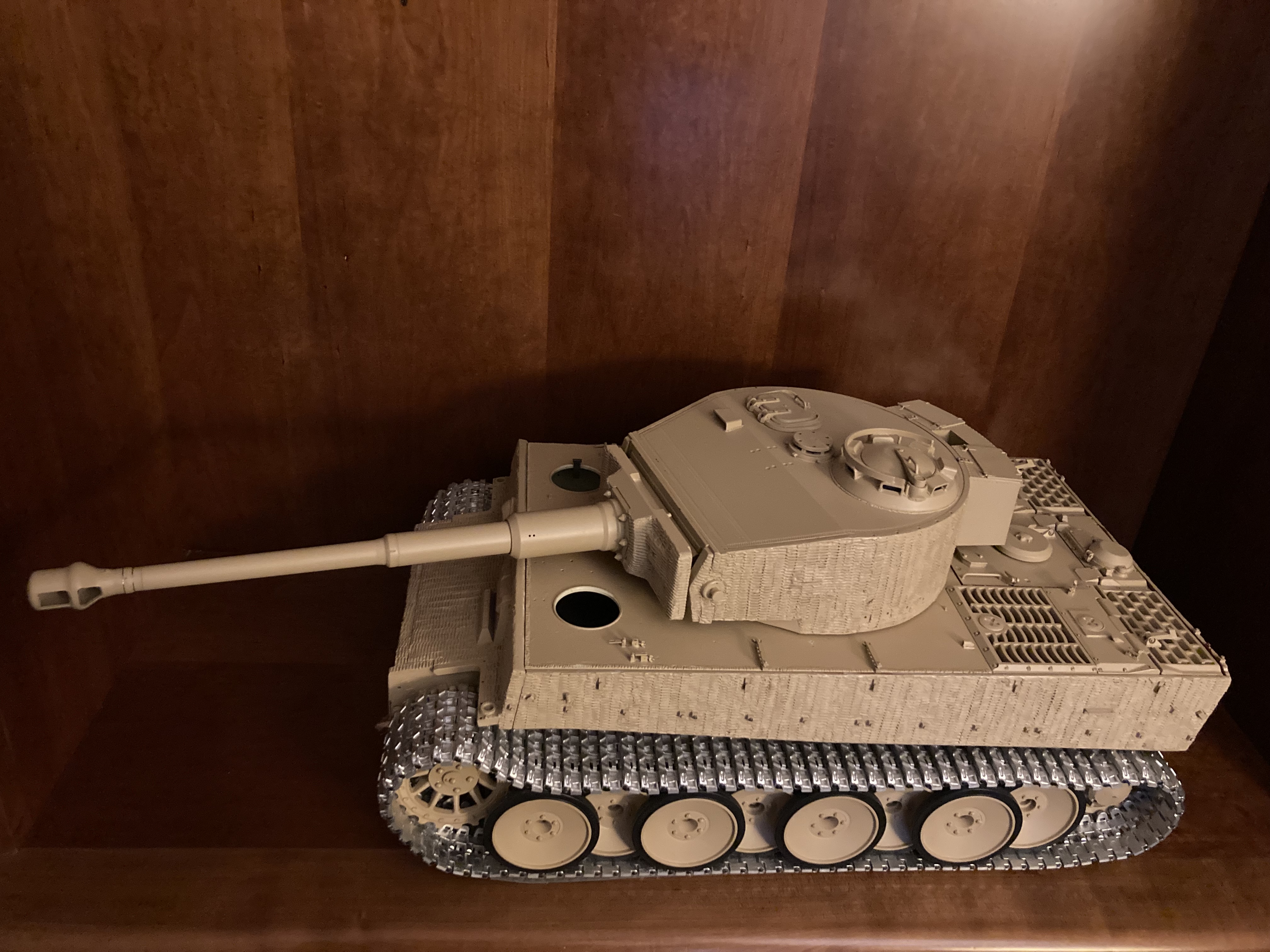

The tank is number 6 of the 506 and its paintwork is Dunkelgeb with anti-rust red stripes.
Sorry, I can only attach one photo at a time...
|
|
| 1 |
|
|
24.07.2024, 17:31 Uhr
rc501
|
Hallo
Thank you for the nice messages. A few years ago after work I was so happy to see the reports that encouraged me (I remember -among others- a superb Tiger made by a modeler near Aachen), that I find it normal to send photos.
In the early 1970s, I built a Tamiya Tiger tank with the interior (1/15). It was made of plastic and I always dreamed of having one made of metal.
A meeting at the Saumur tank museum allowed me to get the project off the ground. The modeler had a passion for metalworking and turned the turret into a steel cylinder for me. Luckily, he was in retreat near Vimoutiers in Normandy and was able to take measurements on the real Tiger who remained in this small town.
Alas, this gentleman has died. I have gathered a large amount of documentation with the essentials: the remarkable site of David Byrden, and especially the book by Jenz and Doyle whose drawings are accurate and allow you to work.
I found another turner-miller who is passionate about the work and who created parts very precisely from my drawings: roof of the turret; interior of the turret, etc.The tank is almost finished in terms of metal parts.
The big difficulty is to fit the electronics, the battery, into the available space with the interior details.To respond to Spz.Marder and Panzerpabst, while reproducing the breech, I planned the recoil of the barrel (35mm, but the system must be optimized) and the flash. Due to lack of space, there is no elevation of the barrel.
The tank is number 6 of the 506 and its paintwork is Dunkelgeb with anti-rust red stripes.
Sorry, I can only attach one photo at a time...
Link direkt zu diesem Post in die Zwischenablage kopieren...
|
|
| 1 |
|
|
24.07.2024, 18:29 Uhr
rc501
|
Sorry for the previous duplicate text.

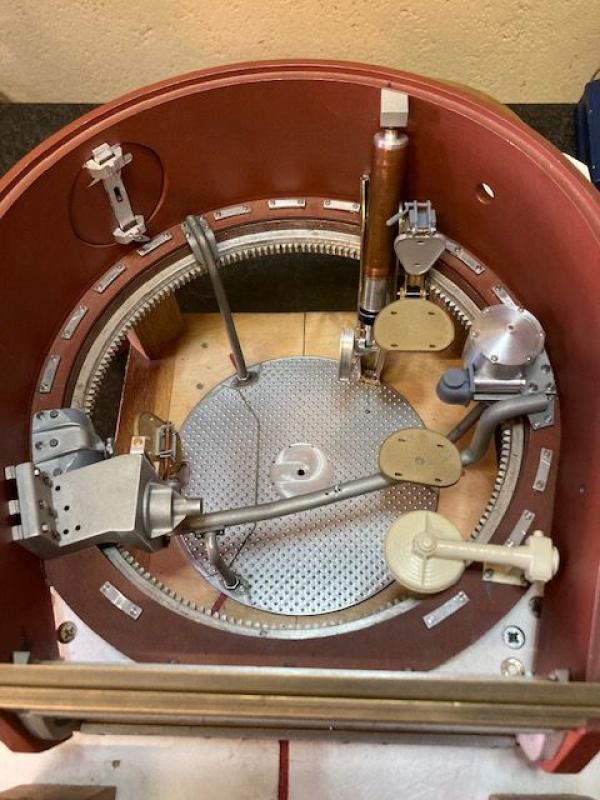

The turret is mounted on a crown with ball bearings like the original, it rotates 360° in 1 minute.
The training is done by the turret platform.
My choice fell on a model in the middle. Fortunately, I was able to go to Saumur with exceptional authorization to enter the tank for measurements (now it\\\'s impossible, everyone is afraid of a lawsuit in the event of injuries...and the tank is dismantled for restoration).

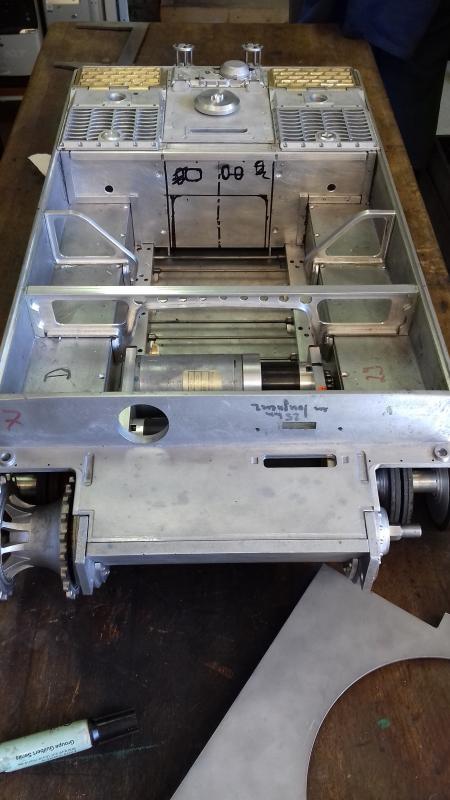

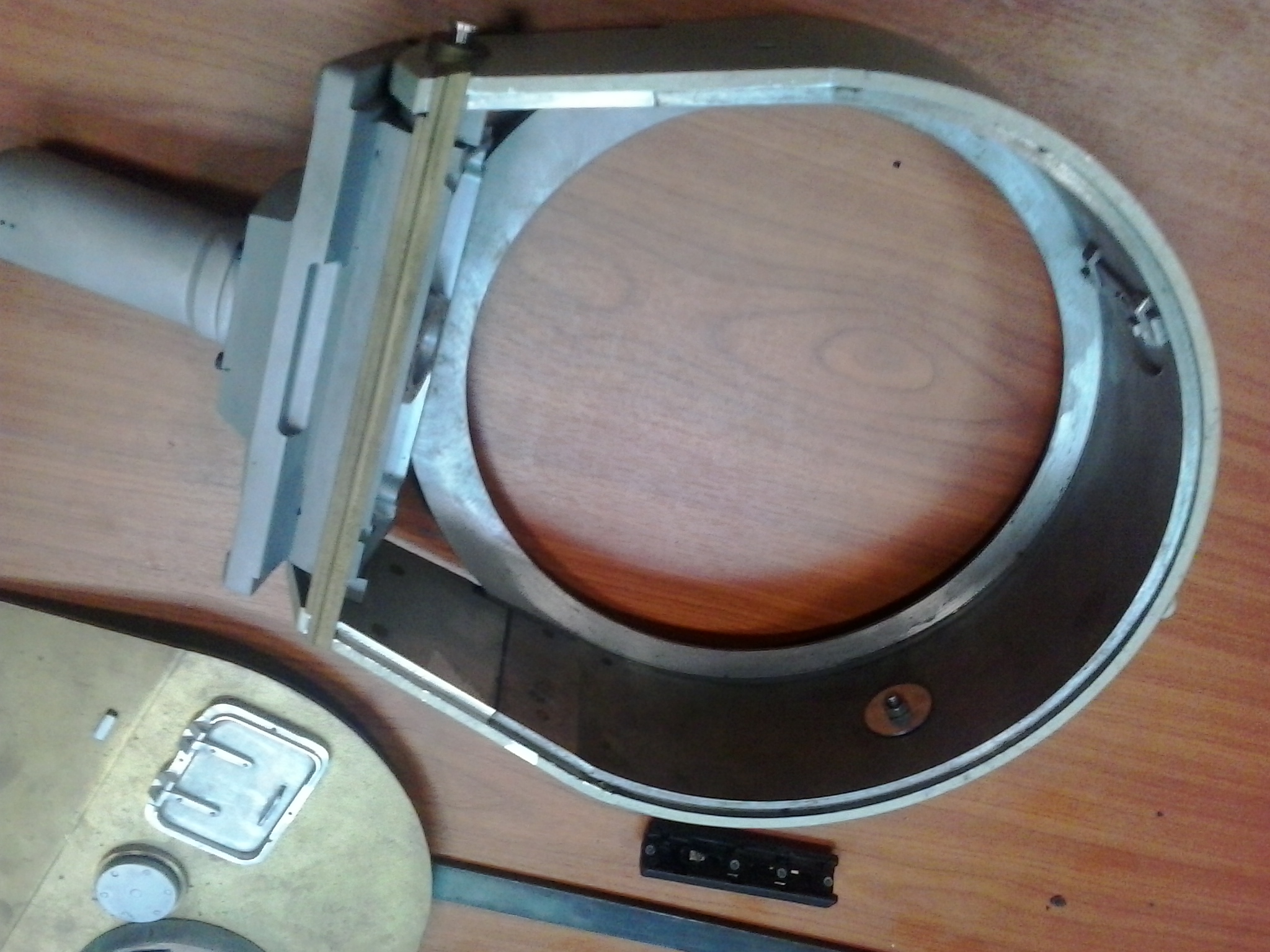

The big job was to take existing parts to bring them to the exact measurement (for example the hull roof from 4 mm to 2.5 mm) and to cut the turret roof to reproduce the interior and exterior. The beautiful work of the turner-miller to cut commander\\\'s cuppola with periscopes (I will show the photos on the machine, those who know metal work will appreciate).
The tank is practically finished in terms of parts, I am currently struggling with the electronic and sound part and I will have the opportunity to ask for your help quickly for the sound banks of Tiger I
Otherwise, building the tank for almost twenty years now allowed me to go to Friedberg where I found a typical German restaurant to eat very good sausages, black German bread accompanied by beers. I visited the Munster tank museum and there was a nice demonstration of RC 1/6 and 1/4 tanks and 3 times in Munich (very pleasant city) to go to Mr Stehr where I was well received.
|
|
| 1 |
|
|
01.08.2024, 21:15 Uhr
paul182
|
hello, unknown modelbuilder,
I like your model. You build very accurately. I think, the turret turns at the original speed.
You were very lucky with the museum in Saumur, that you met a very helpful person.
It is certainly very difficult to integrate a drive into a scale built model. You will have to make compromises at one point or another.
I am glad that you enjoyed the German food, that is not a matter of course.
Why don´t you translate you explanations into German?
Best wishes, Reinhard
|
|
| |
|
|
10.09.2024, 18:49 Uhr
rc501
|
Hallo Panzerfreunde,

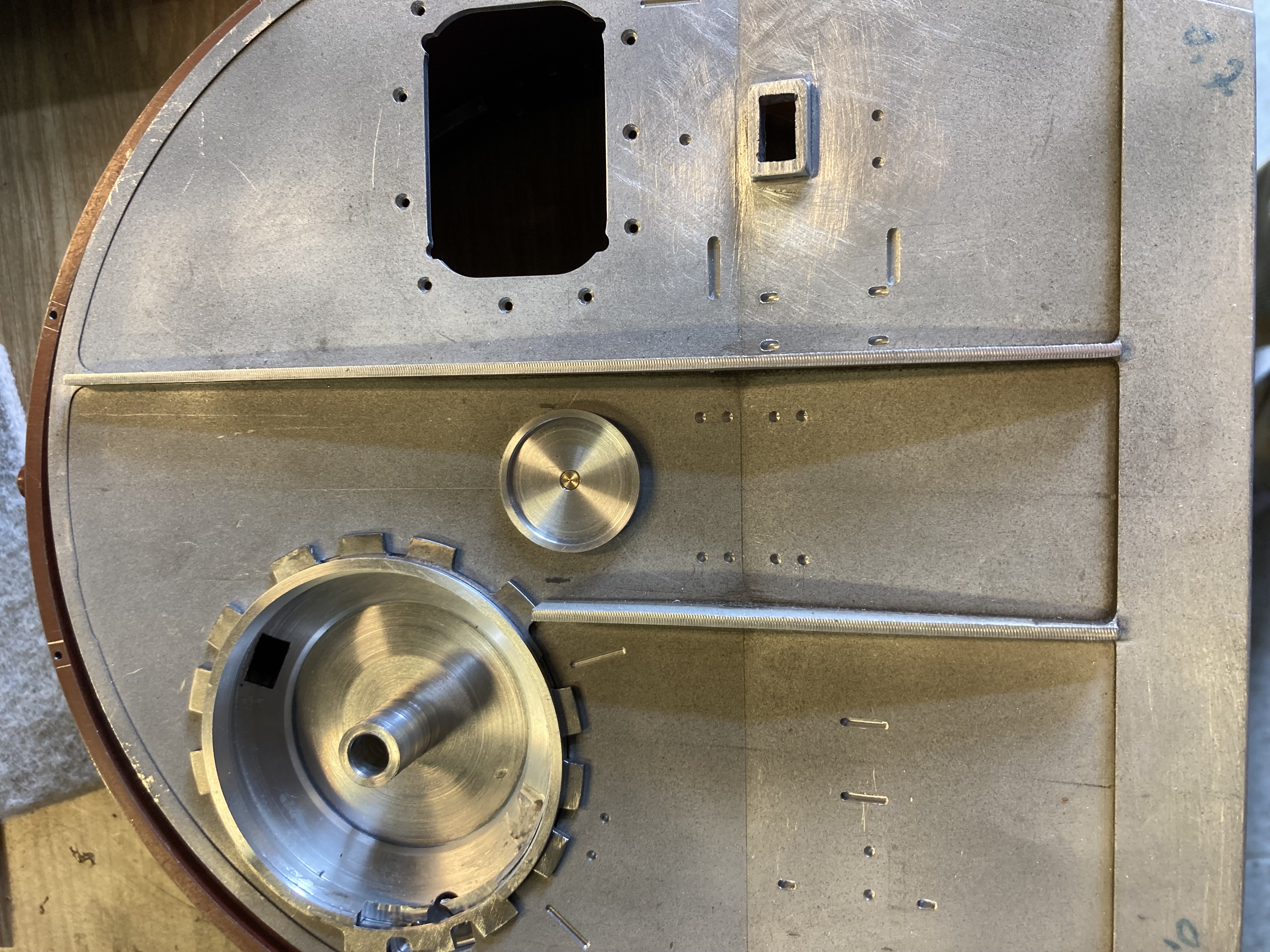

Einige Fotos von den Arbeiten am Turmdach und dem Drechseln der Prismenspiegelkuppel für die Nachbildung des Innenraums.
Jetzt ist der schwierigste Teil, die richtigen Motor-, Brems- und Geräuschgeräusche der Ketten in das Beier-Modul zu bekommen.
Wenn einer von euch eine gute Quelle hat, um diese Sounds aufzunehmen und mir helfen kann, würde ich mich sehr freuen.
Freundlich.
Didier
|
|
| |
|
|
13.09.2024, 20:23 Uhr
paul182
|
hallo Didier,
danke für die neuesten Fotos. Du, oder Dein Freund, ihr macht eine wirklich gute Arbeit! Wie dick war denn das Aluminiumblech, aus dem ihr das Turmdach gefräst habt?

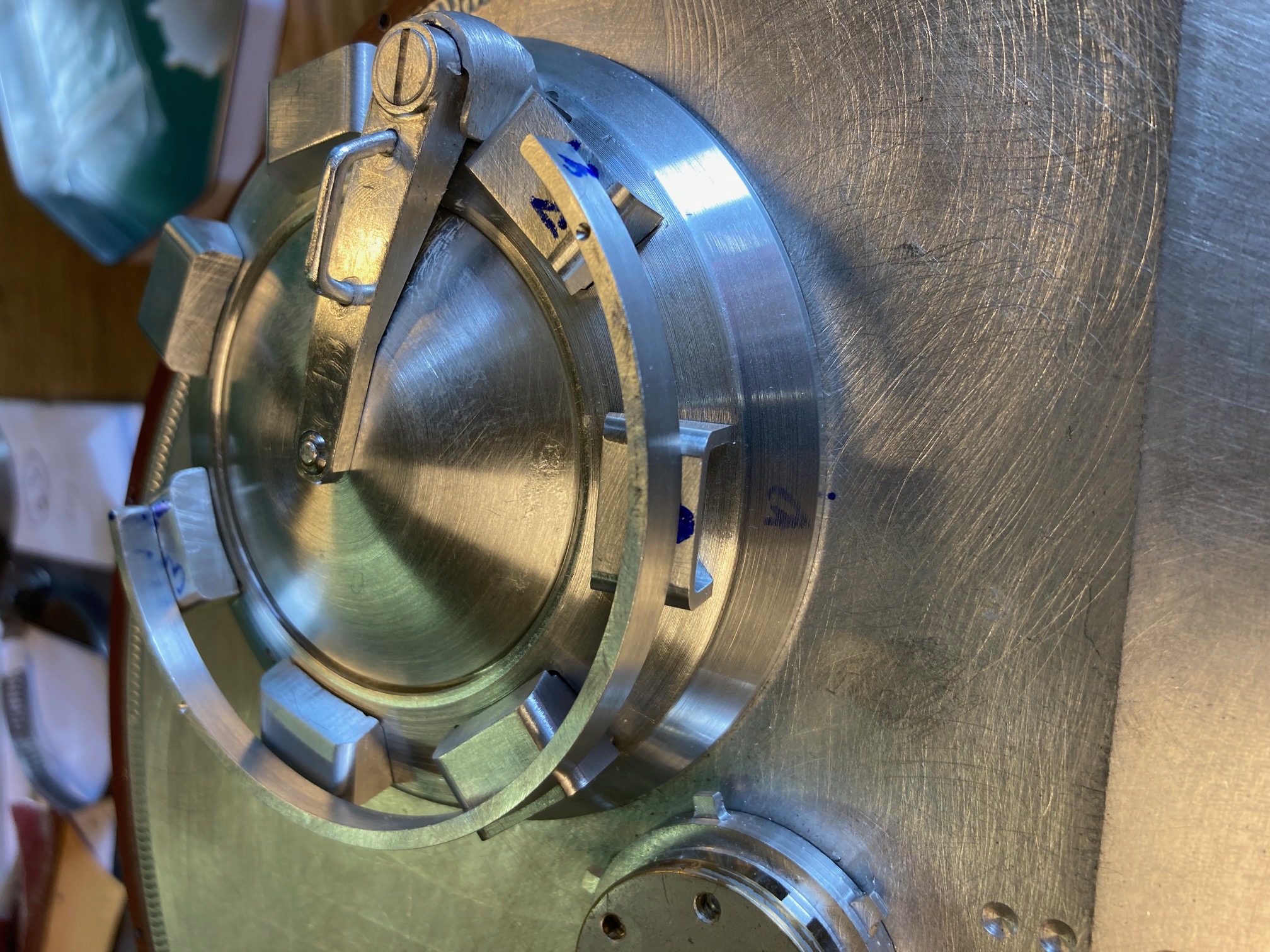

Auf ein Foto Deiner Kommandantenkuppel (Prismenspiegelkuppel) bin ich schon gespannt.
Zu den Motor-, Brems- und Kettengeräuschen kann ich nichts sagen. Ich weiß aber, daß es hier Modellbauer gibt, die etwas dazu sagen könnten. Vielleicht sind diese gerade im Urlaub.
Beste Grüße von Reinhard
|
|
| |
|
|
17.09.2024, 19:05 Uhr
rc501
|
Hallo Reinhard

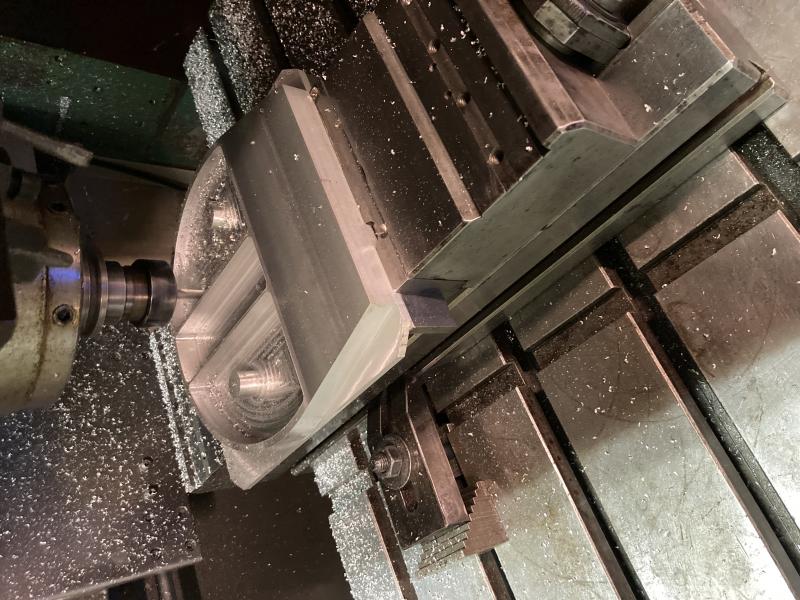

Für die Frage nach der Dicke des Turmdaches habe ich mit einer 20mm dicken Scheibe begonnen, um die Frontneigung und die beiden Verstärkungen zu integrieren.

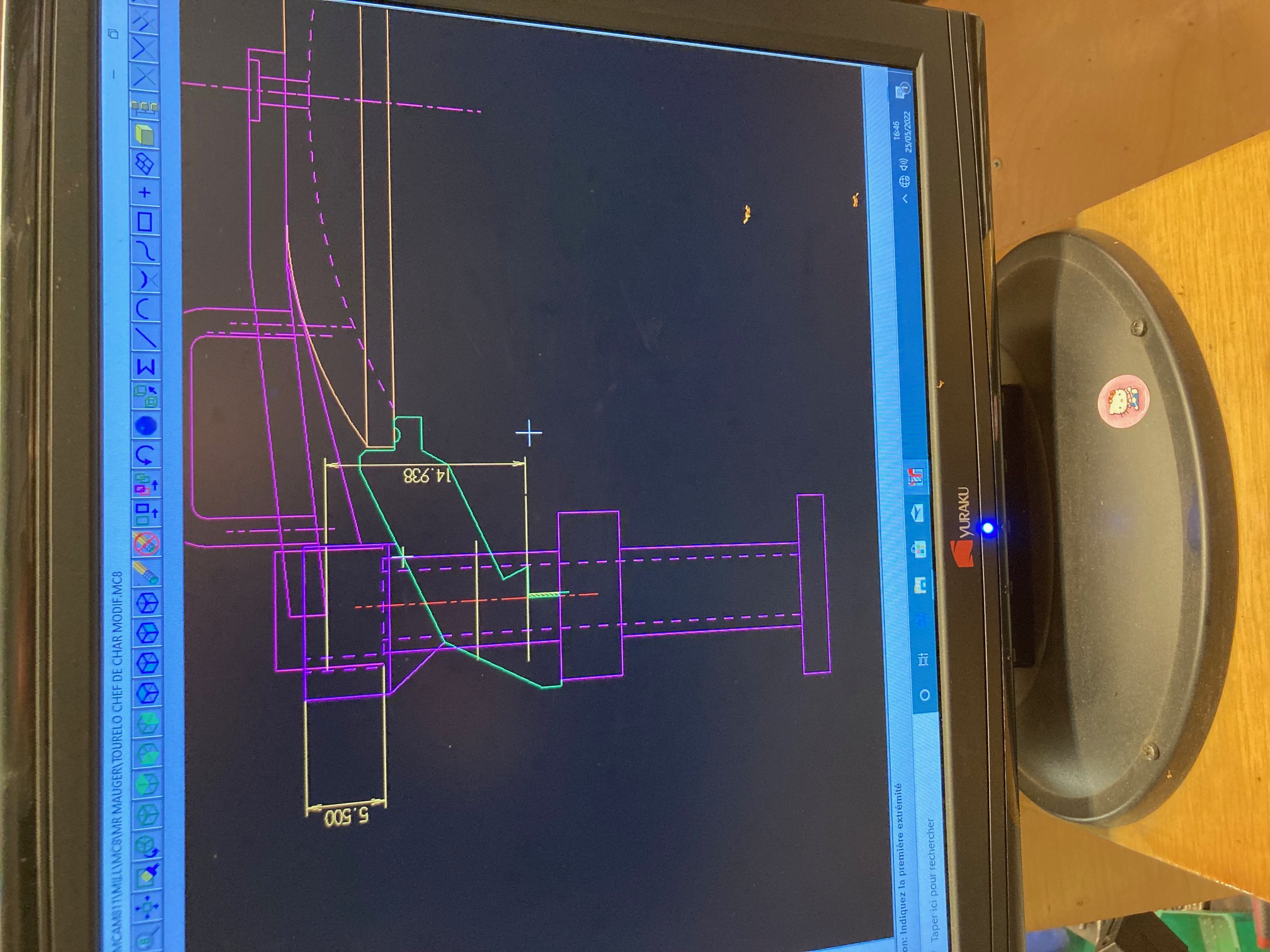

Für die Kuppel habe ich anhand der Zeichnungen im Buch von Jentz und Doyle, Zeichnungen, die präzise und korrekt skaliert sind, das Ganze vor dem Computer der Werkzeugmaschine neu entworfen. Das Talent meines Metallspezialisten tat sein Übriges. Meine Herausforderung bleibt die Installation der Elektronik unter dem Boden.
Ich fahre morgen mit dem Auto (die schwere Panzerkarosserie befindet sich im Kofferraum) in die Provinz, um beim Metallspezialisten zu arbeiten; Aufgrund der „grünen Leute“ und der gesperrten Straßen ist es in Paris am kompliziertesten, rauszukommen und nach Hause zu gehen.
Beste GrüBe de Didier
|
|
| |
|
|
17.09.2024, 19:13 Uhr
rc501
|
der schwer zu drehende Teil, die äußere Führung der Achse
|
|
| |
|
|
17.09.2024, 19:17 Uhr
rc501
|

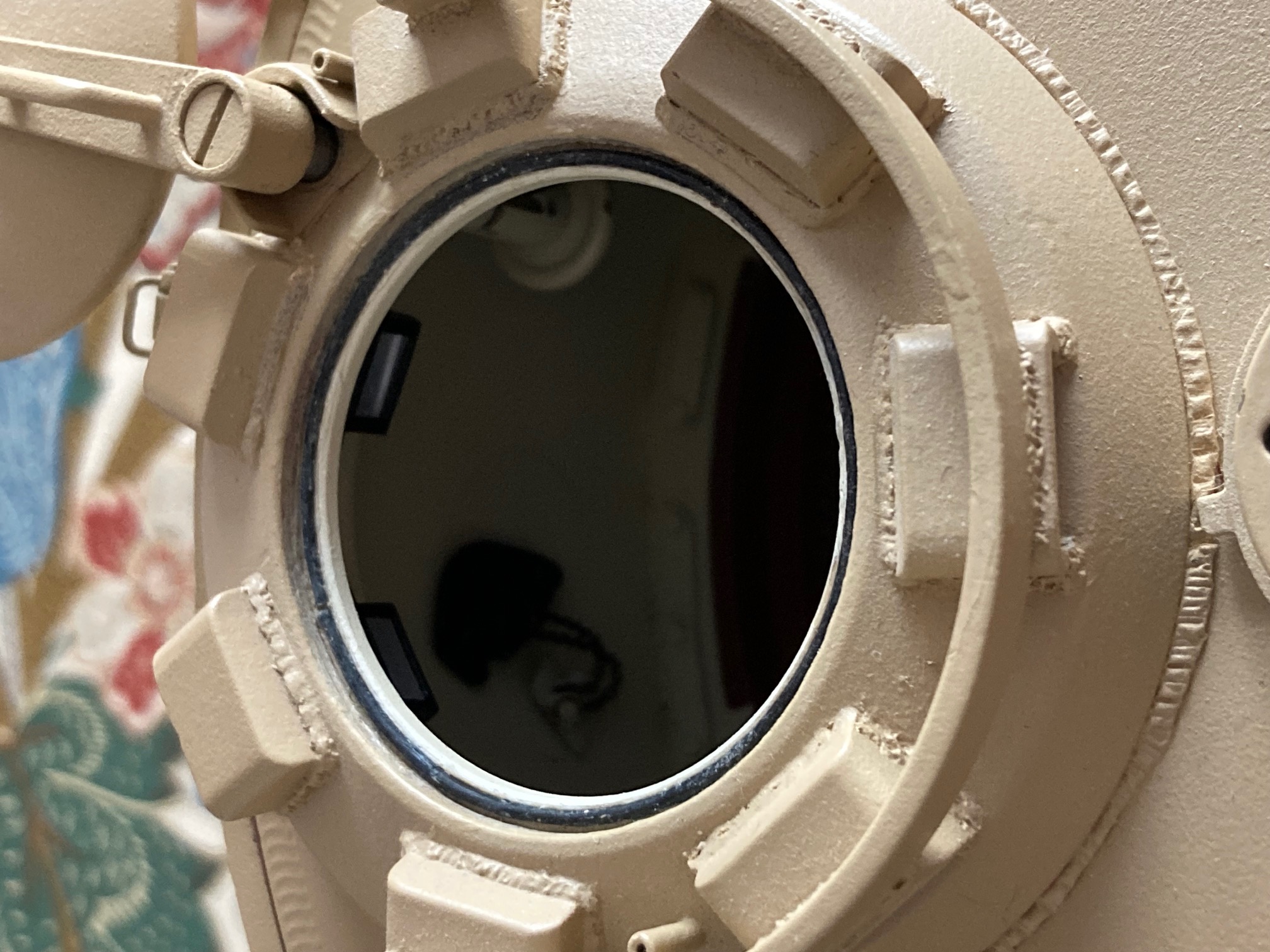

Bei geöffnetem Deckel können Sie den funktionsfähigen MP-Stopfen im Inneren sehen.
|
|
| |
|
|
18.09.2024, 21:38 Uhr
paul182
|
hallo Didier,
die Kommandantenkuppel sieht sehr gut aus! Aus welchem Material ist diese? Ich frage deshalb, da sie so glänzt. Ist die Kuppel aus Stahl?
Du hast eine richtige Gummidichtung eingebaut?

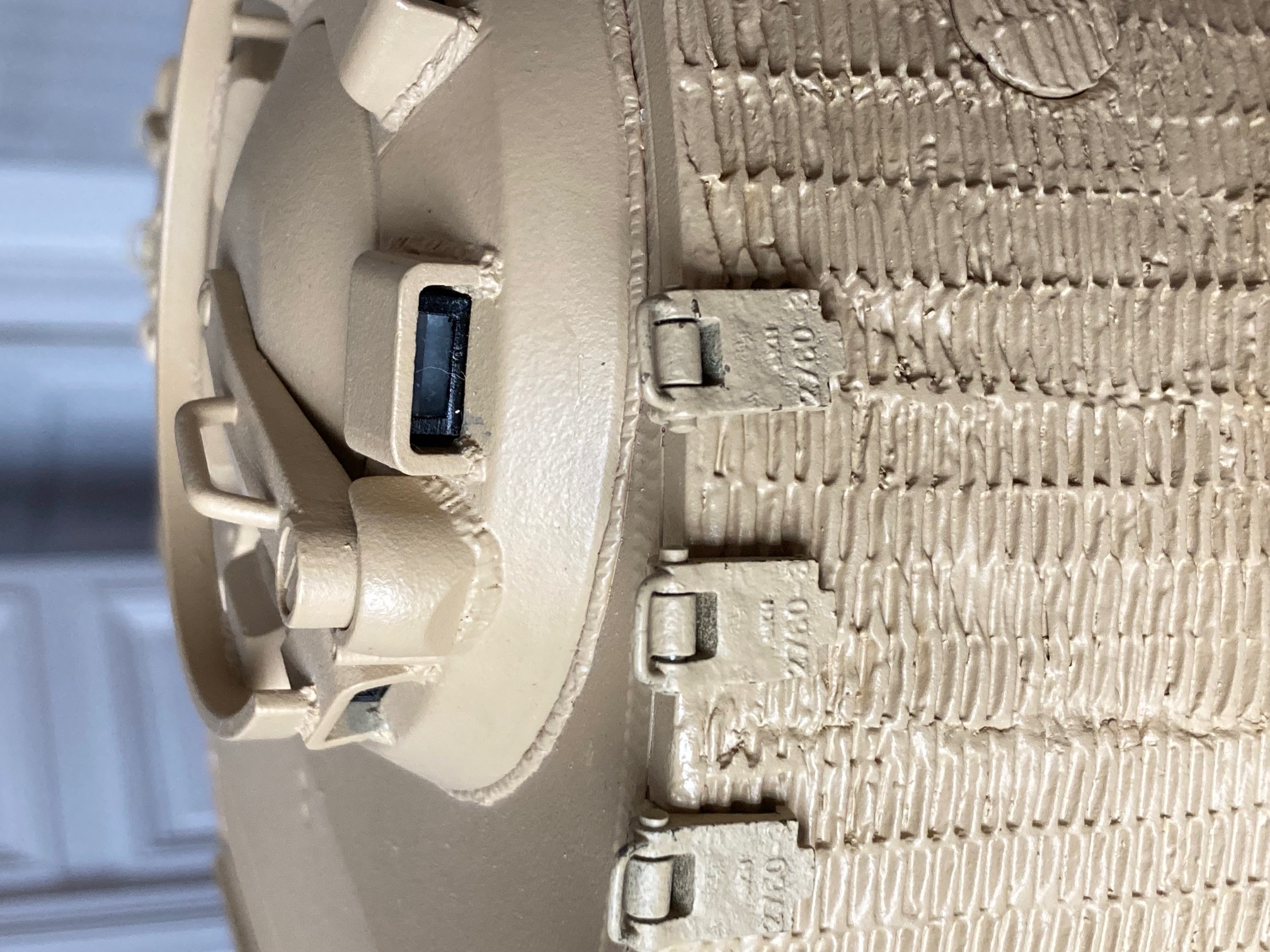

Die Halterungen für die Turm-Ersatz-Kettenglieder sehen auch sehr echt aus. Hast Du diese aus Metall gegossen?
Grüße, Reinhard
|
|
| |
|
|
